Technology name
Last update: Dec 2024Non-ARV/Non-Hormonal Dual-Purpose Monthly Vaginal Ring (Onering) (MATRIX-003)
Developer(s)
Type of technology
Intra-vaginal ring
Administration route
Topical (Vaginal)
Development state and regulatory approval
Soluble adenyl cyclase (sAC) inhibitors
Pre-clinical
Not provided
Description
The dual-purpose vaginal ring is a silicone-based, doughnut-shaped vaginal ring designed for monthly contraception and prevention of diseases. It has an outer diameter of 55 mm and incorporates two drug delivery cassettes. One cassette contains a novel antiviral peptide, which is a protein fragment, while the other cassette delivers a hormone-free contraceptive agent—a soluble adenyl cyclase (sAC) inhibitor. Both active agents are released simultaneously at a controlled rate over a 28-day period.
Developer(s)
Oak Crest Institute
The Oak Crest Institute of Science was founded in 2001 in Monrovia, California, by Dr. Marc Baum. It began as an independent, non-profit research organization with a mission to conduct impactful scientific research while training the next generation of scientists. Over the years, it has grown into a hub for interdisciplinary research, focusing on drug delivery and infectious diseases.
Technology highlight
1. Sustained Release: Enables controlled and simultaneous release of two distinct drugs within the vaginal flora, ensuring localized and prolonged therapeutic efficacy. 2. Self-Administration: Designed for ease of use, allowing users to independently insert and remove the device. 3. Cost-Effectiveness: Low manufacturing costs make it an accessible option for widespread use. 4. Extended Shelf Life: Exhibits a longer shelf life compared to other long-acting contraceptive formulations, enhancing storage stability and usability.
Illustration(s)
Technology main components

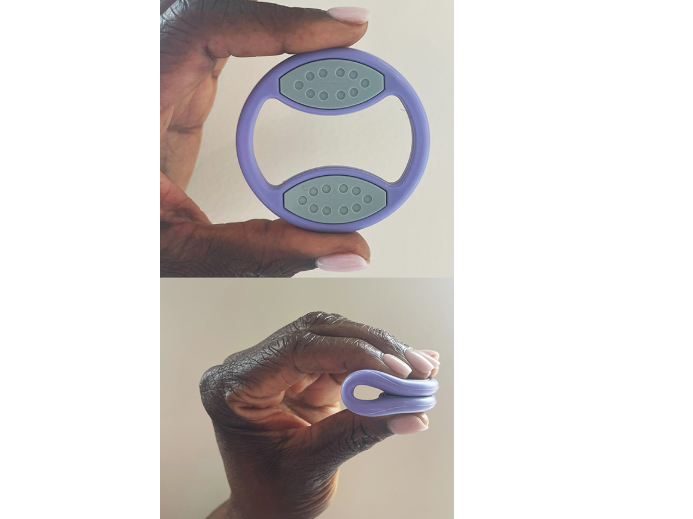

The Onering is a silicone-based, doughnut-shaped vaginal ring featuring two distinct lobes. Each lobe consists of a reservoir support structure enclosed by a rate-controlling membrane and sealed with a reservoir end cap. (i) Lobe One contains a novel antiviral peptide, which is a protein fragment. (ii) Lobe Two contains a soluble adenyl cyclase (sAC) inhibitor.
Not provided
Safety, Efficacy and Evidence Summary
The safety outcomes of the Early Phase 1 trial (MATRIX-003) have not yet been disclosed, as the study only commenced in the first quarter of 2024.
Not provided
Not provided
Not provided
APIs compatibility profile
Soluble adenyl cyclase (sAC) inhibitors, including TDI-10229, LRE1, KH7, ADCY10, and TDI-11861, can be utilized in the dual-purpose design of the Onering/MATRIX-003. These inhibitors are selected for their slower dissociation rates and efficient local absorption within the vaginal environment. Currently, sAC inhibitors, whether as first- or second-line agents, have not yet received approval from any regulatory authority.
Antiviral peptides, effective against human immunodeficiency virus (HIV), human papillomavirus (HPV), and herpes simplex virus (HSV), are targeted as a component of combination therapy in the Onering. These antivirals include (i) HIV: Enfuvirtide (T20), C34, TAT-derived peptides, VIRIP, Griffithsin; (ii) HPV: P18, L2-based peptides, HPV-16E7 peptides, RG1 epitope-derived peptides, Mimotopes; (iii) HSV: LL-37, TAT-CaM fusion peptides, BVD-21, G2 peptide, EP-100. Out of these peptides, Enfuvirtide (T20) is currently approved by USFDA (United States Food and Drug Adminstration).
Not provided
Not provided
50-75 wt%
2 different APIs : one API should be an antiviral peptide and other API should be a sAC inhibitor (an hormonal free contraceptive)
Not provided
Scale-up and manufacturing prospects
Not provided
Not provided
Not provided
Not provided
Excipients & delivery device(s)
No proprietary excipient used
No novel excipient or existing excipient used
No residual solvent used
No delivery device
Additional features
- Drug-eluting
- Monolithic
- Removable
- Single-use
- Molded
- Reservoir-type
- At least 1 year shelf life
Not provided
Not applicable
The shelf life of the formulation is longer than most of the long acting formulation i.e., 2 years.
Store at a temperature range of 15°C to 30°C (59°F to 86°F).
Therapeutic area(s)
- Other(s) : "HPV, HSV"
- HIV
- Contraception
- Pre-Exposure Prophylaxis (PrEP)
- Treatment
Potential associated API(s)
- Other antivirals
- Soluble adenyl cyclase (sAC) inhibitors
Use of technology
- Self-administered
Monthly
Targeted user groups
- Adults
- Older Adults
- Female
- Cisgender female
- Transgender female
Unspecified
Unspecified
Unspecified
Not provided
Other antivirals
Antiviral Peptides
Pre-clinical
Not provided
HIV, HSV and HPV
Not provided
Once monthly
Not provided
Soluble adenyl cyclase (sAC) inhibitors
Hormone Free Contraceptive
Pre-clinical
Not provided
Contraception
Not provided
Once monthly
Not provided
There are either no relevant patents or these were not yet submitted to LAPaL
